ASME B16.9 vs. ASME B16.11: Kev Sib Piv Tag Nrho & Cov Txiaj Ntsig ntawm Butt Weld Fittings

Txais tos rau Womic Steel Group!
Thaum xaiv cov khoom siv yeeb nkab rau kev siv hauv kev lag luam, kev nkag siab txog qhov sib txawv tseem ceeb ntawm ASME B16.9 thiab ASME B16.11 tus qauv yog qhov tseem ceeb. Tsab xov xwm no muab kev sib piv ntxaws ntxaws ntawm ob tus qauv siv dav dav no thiab qhia txog qhov zoo ntawm cov khoom siv vuam hauv cov kav dej.

Nkag Siab Txog Cov Khoom Siv Yeeb Nkab

Cov yeeb nkab fitting yog ib qho khoom siv hauv lub kaw lus kav dej los hloov kev taw qhia, kev sib txuas ceg, lossis hloov kho cov yeeb nkab txoj kab uas hla. Cov fittings no tau txuas nrog lub kaw lus thiab muaj ntau qhov ntau thiab tsawg thiab cov sijhawm kom phim cov yeeb nkab sib xws.

Hom Yeeb Nkab Fittings

Cov khoom siv yeeb nkab raug faib ua peb pawg tseem ceeb:

Cov Khoom Siv Taub Hau Weld (BW):Tswj hwm los ntawm ASME B16.9, cov fittings no yog tsim los rau kev siv vuam thiab suav nrog cov khoom sib dua, cov khoom siv tiv taus corrosion tsim raws li MSS SP43.

Cov Khoom Siv Rau Qhov (Socket Weld) (SW):Txhais raws li ASME B16.11, cov khoom siv no muaj nyob rau hauv Chav Kawm 3000, 6000, thiab 9000 qhov kev ntsuas siab.

Cov Khoom Siv Sib Txuas (THD):Kuj tau teev tseg hauv ASME B16.11, cov khoom siv no tau muab faib ua pawg hauv qab Chav Kawm 2000, 3000, thiab 6000.

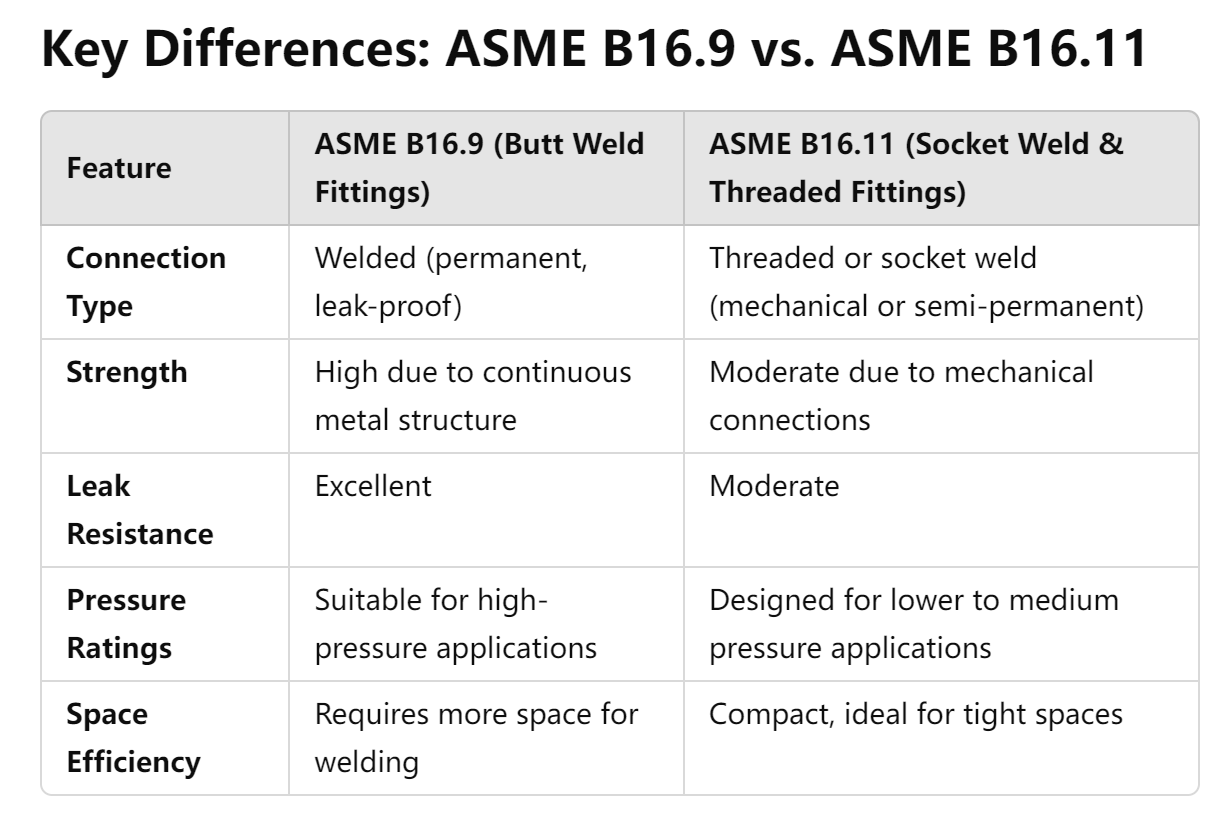

Qhov Txawv Tseem Ceeb: ASME B16.9 vs. ASME B16.11

Feature

ASME B16.9 (Cov Khoom Siv Weld Taub Hau)

ASME B16.11 (Qhov (Socket Weld & Threaded Fittings))

Hom Kev Sib Txuas

Welded (mus tas li, tsis xau)

Xov los yog qhov (socket weld) (mechanical los yog semi-permanent)

Lub zog

Siab vim yog cov qauv hlau txuas ntxiv mus

Nruab nrab vim yog kev sib txuas ntawm cov khoom siv kho tshuab

Kev Tiv Thaiv Qhov Xaus

Zoo heev

Nruab nrab

Kev Ntsuas Siab

Haum rau cov ntawv thov siab

Tsim los rau cov ntawv thov siab qis dua mus rau nruab nrab

Kev Siv Tau Zoo Ntawm Qhov Chaw

Yuav tsum muaj chaw ntau dua rau kev vuam

Compact, zoo tagnrho rau qhov chaw nqaim

Cov Khoom Siv Weld Weld Txheem Hauv ASME B16.9

Cov hauv qab no yog cov khoom siv sib txuas ua ke uas ASME B16.9 them:

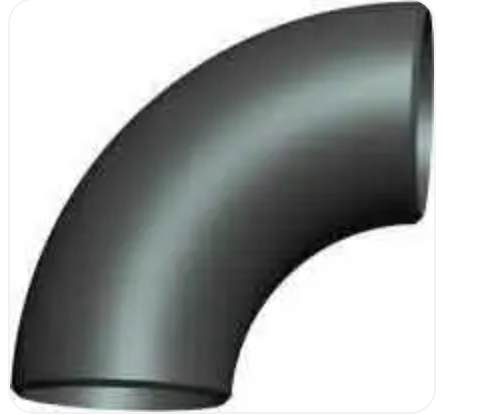

90 ° Lub Luj Tshib Ntev (LR)

45° Lub Luj Tshib Ntev (LR)

90 ° Luv Radius (SR) Lub Luj Tshib

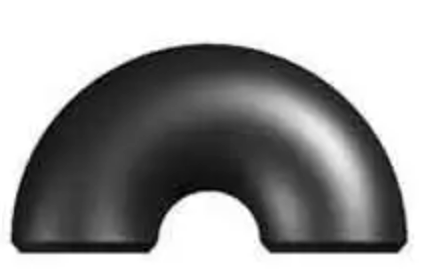

180 ° Lub Luj Tshib Ntev (LR)

180 ° Luv Radius (SR) Lub Luj Tshib

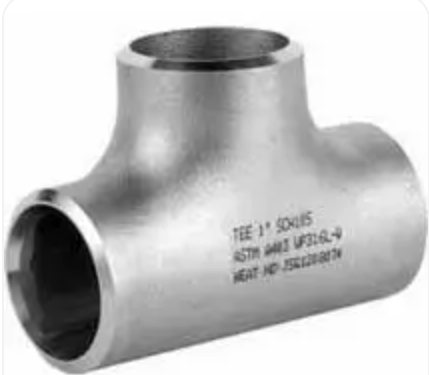

Tee Sib Npaug (EQ)

Txo Tee

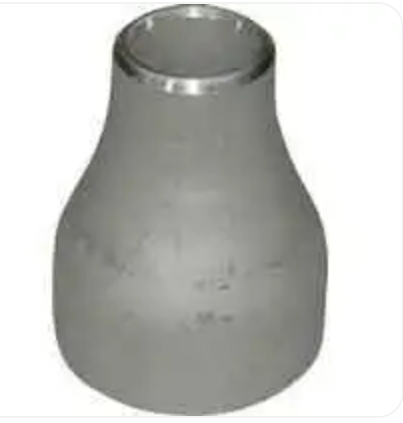

Concentric Reducer

Eccentric Reducer

Lub hau kawg

Qhov Kawg ASME B16.9 & MSS SP43

Cov txiaj ntsig ntawm Butt Weld Fittings

Kev siv cov khoom siv vuam vuam hauv lub kaw lus kav dej muaj ntau yam txiaj ntsig:

Cov Pob Qij Txha Mus Ib Txhis, Tsis Muaj Qhov Xaus: Kev vuam ua kom muaj kev sib txuas ruaj ntseg thiab ruaj khov, tshem tawm cov xau.

Lub Zog Txhim Kho Dua: Cov qauv hlau txuas ntxiv ntawm cov yeeb nkab thiab cov khoom sib txuas ua rau lub zog tag nrho ntawm lub kaw lus muaj zog.

Qhov Nto Sab Hauv du: Txo qhov poob siab, txo qhov turbulence, thiab txo qhov kev pheej hmoo ntawm corrosion thiab erosion.

Me me thiab txuag qhov chaw: Cov kab ke vuam xav tau qhov chaw tsawg kawg nkaus piv rau lwm txoj kev sib txuas.

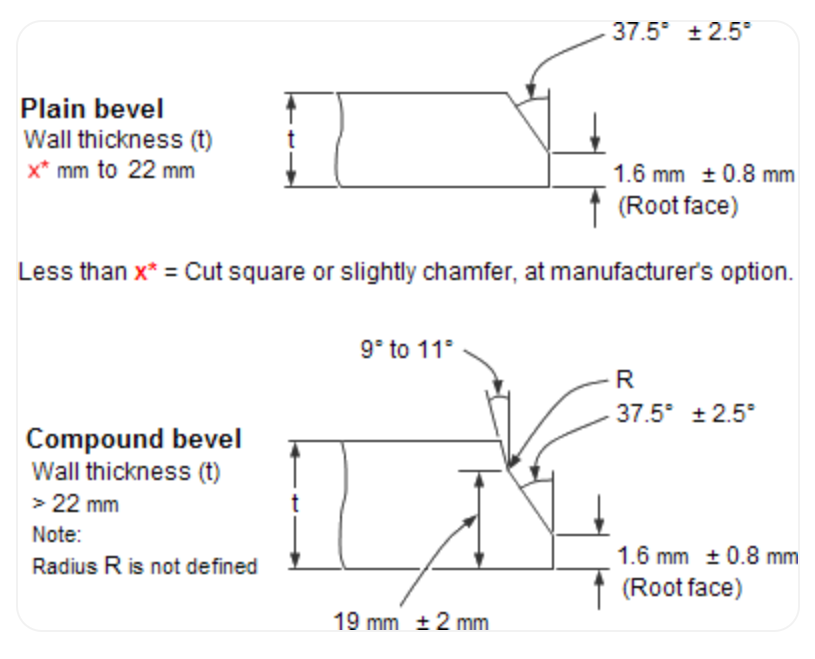

Cov Qhov Kawg Beveled rau Seamless Vuam

Txhua qhov khoom siv vuam pob tw muaj cov qhov kawg beveled kom yooj yim rau kev vuam seamless. Qhov beveling yog qhov tseem ceeb rau kev ua kom muaj zog sib koom ua ke, tshwj xeeb tshaj yog rau cov kav dej uas muaj phab ntsa tuab tshaj:

4 hli rau Austenitic Stainless Steel

5 hli rau Ferritic Stainless Steel

ASME B16.25 tswj hwm kev npaj cov kev sib txuas ntawm qhov kawg ntawm lub pob tw, kom ntseeg tau tias cov vuam bevels raug, cov duab sab nraud thiab sab hauv, thiab kev kam rau siab kom raug.

Kev Xaiv Khoom Siv Rau Cov Yeeb Nkab Fittings

Cov ntaub ntawv siv dav dav hauv cov khoom siv vuam vuam muaj xws li:

Cov Hlau Carbon

Hlau tsis xeb

Hlau cam khwb cia

Aluminium

Tooj liab

Yas (ntau hom)

Cov Khoom Siv Uas Muaj Kab: Cov khoom siv tshwj xeeb nrog cov txheej sab hauv rau kev ua tau zoo dua hauv cov ntawv thov tshwj xeeb.

Cov khoom siv ntawm qhov sib txuas feem ntau yog xaiv los phim cov khoom siv yeeb nkab kom ntseeg tau tias muaj kev sib raug zoo thiab ua haujlwm tau ntev hauv kev lag luam.

Txog WOMIC STEEL GROUP

WOMIC STEEL GROUP yog ib lub tuam txhab ua lag luam thoob ntiaj teb hauv kev tsim khoom thiab muab cov khoom siv yeeb nkab zoo, flanges, thiab cov khoom siv yeeb nkab. Nrog kev cog lus ruaj khov rau kev tsim kho tshiab, zoo, thiab kev txaus siab rau cov neeg siv khoom, peb muab cov kev daws teeb meem ua lag luam rau roj & roj, petrochemical, kev tsim hluav taws xob, thiab kev tsim kho. Peb cov khoom siv ASME B16.9 thiab ASME B16.11 ua kom muaj kev ua tau zoo hauv cov ntawv thov uas xav tau ntau tshaj plaws.

Xaus lus

Thaum xaiv cov khoom siv yeeb nkab, kev nkag siab txog qhov sib txawv ntawm ASME B16.9 cov khoom siv vuam thiab ASME B16.11 qhov (socket weld/threaded fittings) yog qhov tseem ceeb heev. Txawm hais tias ob qho qauv no ua haujlwm tseem ceeb hauv cov kab ke kav dej, cov khoom siv vuam muab lub zog zoo dua, kev sib txuas tsis xau, thiab kev ruaj khov dua. Kev xaiv cov khoom siv zoo yuav ua kom muaj kev ua haujlwm zoo, kav ntev, thiab muaj kev nyab xeeb hauv ntau yam kev siv hauv kev lag luam.
