Premium Stainless Hlau Yeeb Fittings los ntawm Womic Steel

High-Quality Manufacturing, Ntiaj teb no Standards ua raws, thiab kev Customization Services

Womic Steel zoo siab sawv cev ua cov chaw tsim khoom ntawm stainless hlau yeeb nkab fittings, muab ntau yam khoom tsim los ua kom tau raws li cov qauv zoo thoob ntiaj teb. Nrog cov chaw tsim khoom siab heev, pab pawg kws tshaj lij, thiab cov khoom siv raw khoom zoo, Womic Steel ua kom cov khoom xa tuaj raws sijhawm thiab kev ua tau zoo rau txhua qhov koj xav tau cov kav dej.

Cov Khoom Qib & Cov Txheej Txheem Thoob Ntiaj Teb

Womic Steel manufactures stainless hlau yeeb nkab fittings siv cov ntaub ntawv qib siab xws li 304, 304L, 304H, 316, 316L, 321, 317L, 310S, thiab 904L, thiab lwm yam. Cov fittings no ua raws li ntau yam ntawm cov qauv thoob ntiaj teb, suav nrog:
1. ASME/ANSI B16.9, B16.11, B16.5
2. ASTM A403, A182, A312
3. EN 10253-3 / EN 10253-4
4. DIN 2605, DIN 2615, DIN 2616, DIN 2617
5. ISO, JIS, thiab GOST cov qauv raws li ib qhov projectlos yog kos duabkev xav tau

Hom Hom Stainless Hlau Yeeb Fittings

Womic Steel muab cov khoom ua tiav ntawm stainless hlau yeeb nkab fittings uas suav nrog:

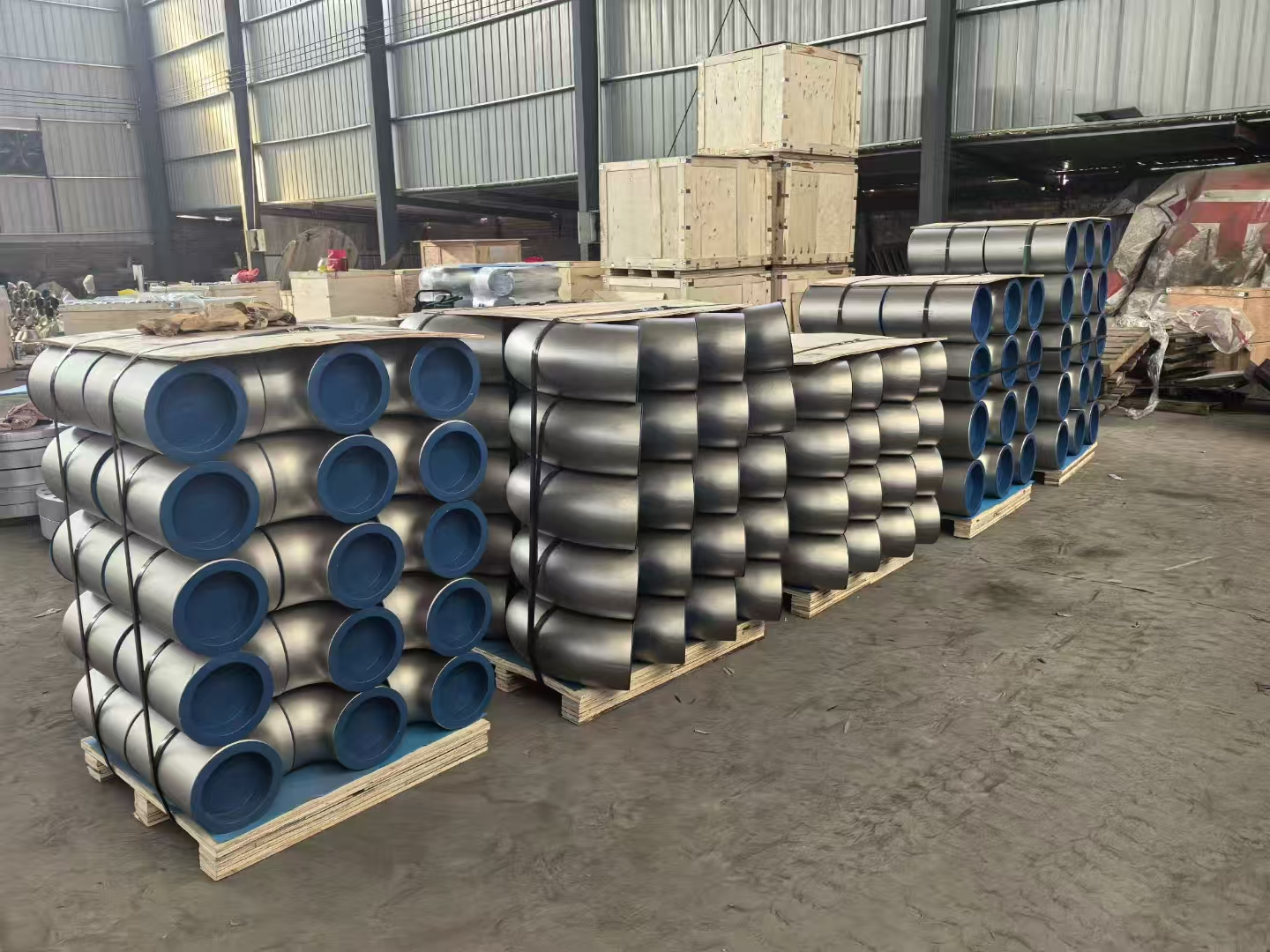

1. Lub luj tshib (45 °, 90 °, 180 °)
2. Tees – Sib npaug thiab txo

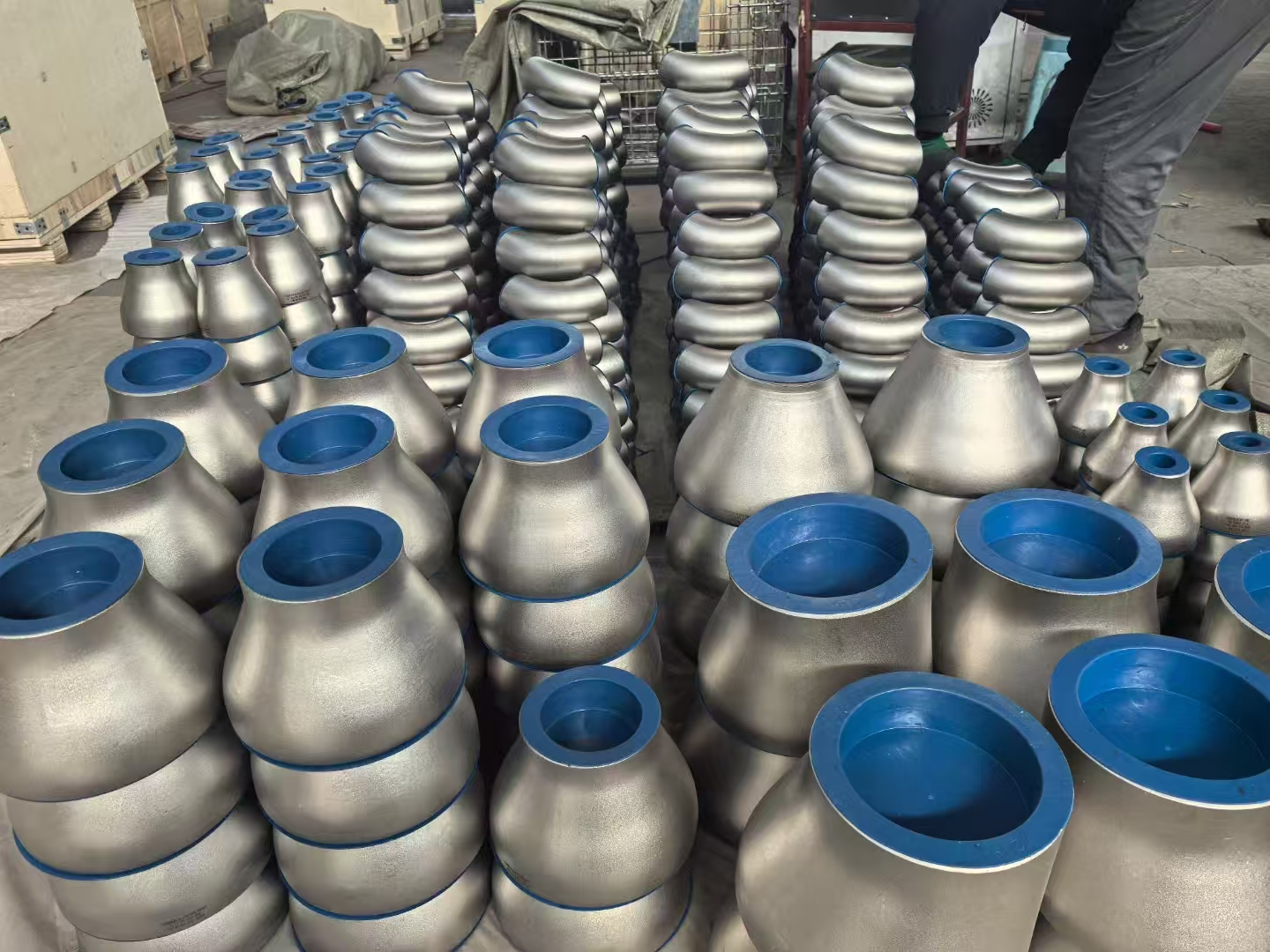

3. Reducers - Concentric thiab eccentric
4. Cov kaus mom thiab cov npog kawg
5. Stub Ends
6. Couplings, Unions, txiv mis, Bushings
7. Flanges - Weld caj dab, plam-on, threaded, socket weld, dig muag, ceg tawv

Specifications thiab Size Range

Womic Steel muaj stainless hlau yeeb nkab fittings nyob rau hauv cov nram qab no loj ntau yam:
- Seamless fittings: ½ "- 24" (DN15 - DN600)
- Welded fittings: mus txog 72 "(DN1800)
- Phab ntsa Thickness: SCH 10S rau SCH XXS, lossis customized
- Kev cai kaum thiab qhov ntev muaj raws li qhov kev thov

Chemical Composition & Mechanical Properties

Cov tshuaj muaj pes tsawg leeg (304L):
-C ≤ 0.035%
Cr: 18.0 - 20.0%
Yog ': 8.0 - 12.0%
- Mn ≤ 2.0%, Si ≤ 1.0%, P ≤ 0.045%, S ≤ 0.03%

Mechanical Properties (ASTM A403 WP304L):
- Tensile zog ≥ 485 MPa
- Tawm Zog ≥ 170 MPa
- Elongation ≥ 30%
- Hardness: ≤ 90 HRB

Optional Impact Test:
- Kev ntsuam xyuas cuam tshuam ntawm -46 ° C (Charpy V-notch) muaj nyob rau ntawm kev thov

Kev tsim khoom & Kev kho cua sov

Stainless hlau yeeb nkab fittings yog tsim los ntawm kub sib sau, txias forming, los yog machining. Cov txheej txheem suav nrog kev txiav, forging, kev kho cua sov (kev daws teeb meem), pickling, passivation, thiab precision machining. Tag nrho cov fittings undergo daws annealing nrog dej los yog cua quenching.

Kev kuaj thiab tshuaj xyuas

Txhua qhov fittings raug tswj xyuas nruj, suav nrog:
- Kev Tshawb Fawb Txog Kev Pom Zoo & Dimensional
- Hydrostatic Pressure Test
- PMI (Positive Material Identification)
- Kev Ntsuas Ultrasonic (UT)
- Dye Penetrant Test (PT)
- Kev ntsuas hluav taws xob (RT)
- Kev Xeem Hardness (HBW)

Cov ntawv pov thawj

Womic Steel tau ntawv pov thawj los ntawm:
- ISO 9001: 2015
- PED 2014/68/EU (rau CE cim)
AD 2000-W0
- EN 10204 3.1 / 3.2 cov ntaub ntawv pov thawj

Daim ntawv thov

Stainless hlau yeeb nkab fittings yog dav siv nyob rau hauv:
1. Roj & Roj
2. Petrochemical
3. Khoom noj khoom haus & dej haus
4. Pharmaceutical
5. Marine & Shipbuilding
6. Kev kho dej
7. Kev tsim hluav taws xob
8. HVAC thiab Hluav Taws Xob Hluav Taws Xob

Lub Sijhawm Lead Ntau Lawm thiab Ntim

Lub sij hawm ua raws li:
- Tshuag: 3-5 hnub
- Txheem:2-4 lub lis piam
- Kev Cai: 4-6 lub lis piam

Ntim:
- Export plywood rooj los yog steel ncej
- Cov kaus mom yas thiab kev tiv thaiv zaj duab xis

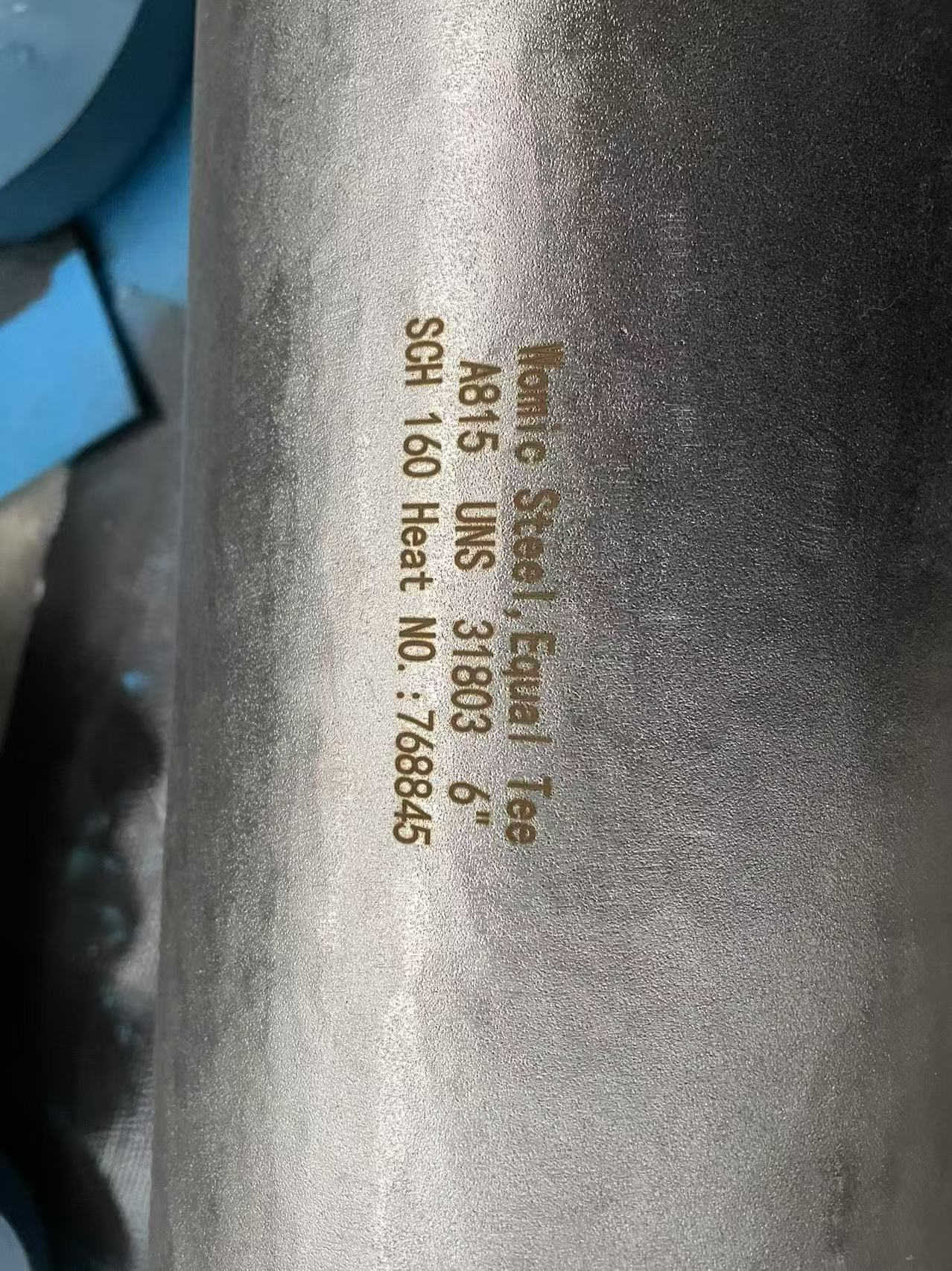

- Cov cim: Kub No., Qib, Loj, Standard, Logo

Kev thauj mus los zoo thiab kev pabcuam ua haujlwm

Womic Steel muaj kev xa khoom sai, hloov tau yooj yim INCOTERMS, thiab ntim ntim. Cov kev pabcuam muaj xws li precision txiav, vuam, beveling, threading, pickling, thiab passivation.

Anti-corrosion tiv thaiv muaj xws li cov roj nruab nrab, PE hnab, los yog shrink wrapping. Nco tseg: Epoxy, FBE, lossis 3LPE txheej tsis siv rau cov yeeb nkab steel hlau.

Peb Qhov Zoo

1. In-house muaj peev xwm tshaj 10,000 tons / xyoo
2. Cov kws tshaj lij R & D thiab QC pab pawg
3. Ceev ceev raw khoom nrhiav
4. Tag nrho cov kev pab cuam customization
5. 100% tshuaj xyuas nrog traceability
6. Cov lus teb ceev ceev thiab xa khoom

Yog xav paub ntxiv, kos duab, lossis cov lus qhia tshwj xeeb, thov hu rau Womic Steel hnub no. Womic Steel - Koj tus khub ntseeg siab rau Stainless Hlau Yeeb Nkab Fittings thoob ntiaj teb.
