Cov Qib Khoom Siv thiab Kev Ua Raws Li Cov Qauv Thoob Ntiaj Teb
Womic Steel tsim cov flanges stainless hlau siv cov khoom siv raw zoo tshaj plaws los ntawm cov neeg muag khoom thoob ntiaj teb uas tau ntawv pov thawj. Cov qib khoom siv feem ntau suav nrog:
- AISI/ASTM Qib: 304, 304L, 304H, 316, 316L, 316Ti, 321, 317L, 310S, 904L
- Duplex & Super Duplex: S31803, S32205, S32750, S32760
- Cov Hlau Nickel (thaum thov): Alloy 20, Hastelloy C276, Inconel 625
Peb cov flanges hlau tsis xeb ua raws li cov qauv thoob ntiaj teb xws li:
1. ASME/ANSI B16.5, B16.47 (Series A & B), B16.36, B16.48
2. ASTM A182 (Forged), A240 (Phaj), A351 (Cast)
3. EN 1092-1 / EN 1092-2
4. DIN 2631 txog DIN 2635
5. JIS B2220, BS 4504, GOST 33259, thiab ISO 7005
Womic Steel kuj tseem tuaj yeem tsim cov flanges rau cov duab kos tshwj xeeb ntawm cov neeg siv khoom thiab cov lus qhia tshwj xeeb ntawm qhov project (OEM / ODM).
Hom Flange thiab Qhov Ntev
Womic Steel tsim cov khoom siv ua tiav ntawm cov hlau tsis xeb flange hom, tsim rau cov chav kawm siab xws li Class 150 txog Class 2500 thiab PN6 txog PN100.
Cov Hom Flange Feem Ntau:

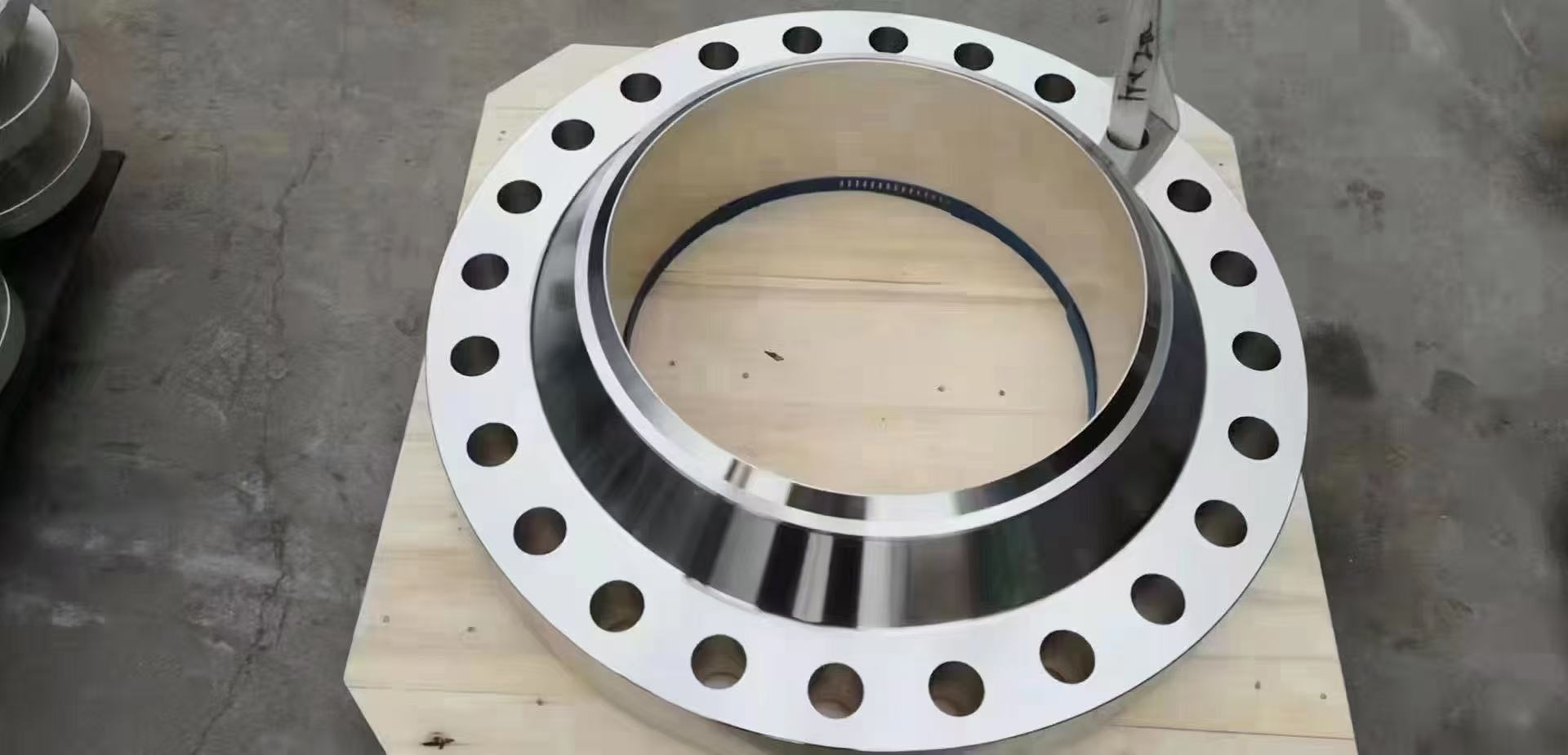

1. Weld Caj Dab Flange (WN)
2. Slip-On Flange (SO)
3. Qhov muag tsis pom Flange (BL)
4. Qhov (Socket) Weld Flange (SW)
5. Xov Flange (TH)
6. Lap Joint Flange (LJ)
7. Orifice Flange, Long Weld Caj Dab, Spectacle Blind, Txo Flange
Qhov Loj Ntau:
ASME/ANSI: ½" txog 60"
- EN/DIN: DN10 txog DN1600
- Thickness: SCH10S rau SCH160 / XXS
- Kev ua haujlwm kho kom haum: txog li 120 "txoj kab uas hla sab nraud muaj
Cov Kev Cai Siv Tshuaj thiab Tshuab (Piv txwv: ASTM A182 F316L)
C ≤ 0.03, Mn ≤ 2.00, Si ≤ 1.00, Cr: 16.0–18.0, Ni: 10.0–14.0, Mo: 2.0–3.0
Txhua yam khoom siv raw khoom tuaj yeem raug kuaj los ntawm PMI thiab kev taug qab cua sov tau ua kom ntseeg tau thoob plaws hauv kev tsim khoom.
Cov Khoom Siv Kho Tshuab thiab Cov Kev Xav Tau Cuam Tshuam
Womic Steel ua kom txhua lub flange ua tau raws li lossis tshaj cov qauv kho tshuab ib qho ASTM lossis EN cov lus qhia:
- Lub zog tensile: ≥ 485 MPa (F316L)
- Lub zog tawm los (0.2% offset): ≥ 170 MPa
- Kev ntev: ≥ 30%
- Qhov nyuaj: ≤ 90 HRB
- Charpy V-Notch Impact Test: Muaj nyob rau ntawm -20 ° C, -46 ° C, lossis qhov kub tshwj xeeb rau qhov project
Muaj daim ntawv pov thawj kuaj xyuas kev kho tshuab (EN 10204 3.1 / 3.2).
Cov Txheej Txheem Tsim Khoom & Kev Kho Mob Kub
- Forging - Raw bar lossis billet forged rau hauv cov duab nrog hydraulic xovxwm
2. Kev Kho Mob Kub - Normalizing lossis kua annealing ib qho khoom spec
3. Kev Siv Tshuab - CNC lathes ua kom tiaj tus, ua siab ntev, thiab ua tiav lub ntsej muag sealing (RF, RTJ, FF, MF, TG)
4. Kev Tho - Lub voj voog qhov ntsia hlau raws li tus qauv lossis tus neeg siv khoom spec
5. Kev Cim - Laser lossis txias-stamped nrog qib, qhov loj me, tus lej cua sov, tus qauv, thiab logo
6. Pickling & Passivation - Xyuas kom meej tias nws tiv taus corrosion thiab ua tiav huv siCov txheej txheem tshwj xeeb xaiv tau: HVOF txheej saum npoo, kev sim cryogenic, lossis kev vuam overlay muaj thaum thov. Peb them sai sai rau qhov roughness ntawm lub ntsej muag sealing (feem ntau yog 3.2–6.3 μm Ra) kom ntseeg tau tias qhov ua tau zoo tshaj plaws ntawm gasket.
Kev Kuaj Xyuas & Kev Tswj Xyuas Zoo
Tag nrho cov flanges raug tshuaj xyuas tag nrho nrog cov phiaj xwm kuaj xyuas tus kheej (ITPs). Cov kev ntsuam xyuas tseem ceeb suav nrog:
- Kev Tshuaj Xyuas Pom Kev & Qhov Loj (100%)
- Kev Ntsuas Hydrostatic (rau kev sib dhos)
- PMI (Kev Txheeb Xyuas Cov Khoom Zoo)
- Kev Ntsuas Ultrasonic (UT) ntawm kev forgings
- Kev Ntsuas Cov Xim Nkag Mus Rau Hauv (PT)
- Kev Kuaj Mob X-ray (RT) thaum thov
- Kev Ntsuas Qhov Nyuaj thiab Kev Cuam Tshuam
- Kev Tshuaj Xyuas Qhov Nto Roughness
Kev taug qab tag nrho tau tswj hwm nrog tus lej cua sov tshwj xeeb & Batch ID.
Cov Ntawv Pov Thawj
- ISO 9001: 2015 Kev Tswj Xyuas Kev Zoo
- PED 2014/68/EU Cov Lus Qhia Txog Cov Khoom Siv Siab (cim CE)
AD 2000-W0, EN 10204 3.1 / 3.2
- Daim ntawv pov thawj DNV, BV, LR, ABS, thiab TÜV thaum thov
Txhua yam khoom siv ua raws li NACE MR0175 / ISO 15156 yog tias xav tau rau kev pabcuam qaub.
Cov ntawv thov
Womic Steel cov flanges stainless hlau yog tsim los rau:
- Cov kav dej roj thiab roj av
- Petrochemical thiab Refinery
- Cov Chaw Kho Dej
- Kev Ua Tshuaj thiab Kev Ua Khoom Noj
- Cov Chaw Tsim Hluav Taws Xob thiab Cov Tshuab Boiler
- Kev Teeb tsa Marine thiab Offshore
- Kev tua hluav taws, HVAC, thiab Lub Tshuab Txias Hauv Cheeb TsamLwm yam.
Lub Sijhawm Ua Ntej Tsim Khoom & Ntim Khoom
Lub Sijhawm Ua Ntej:
- Cov khoom hauv Tshuag: 5–7 hnub
- Kev tsim khoom txheem: 15–25 hnub
- Kev cai/tshuab: 30–45 hnub nyob ntawm seb qhov nyuaj npaum li cas
Ntim:
- Cov ntaub ntawv plywood export seaworthy los yog pallets

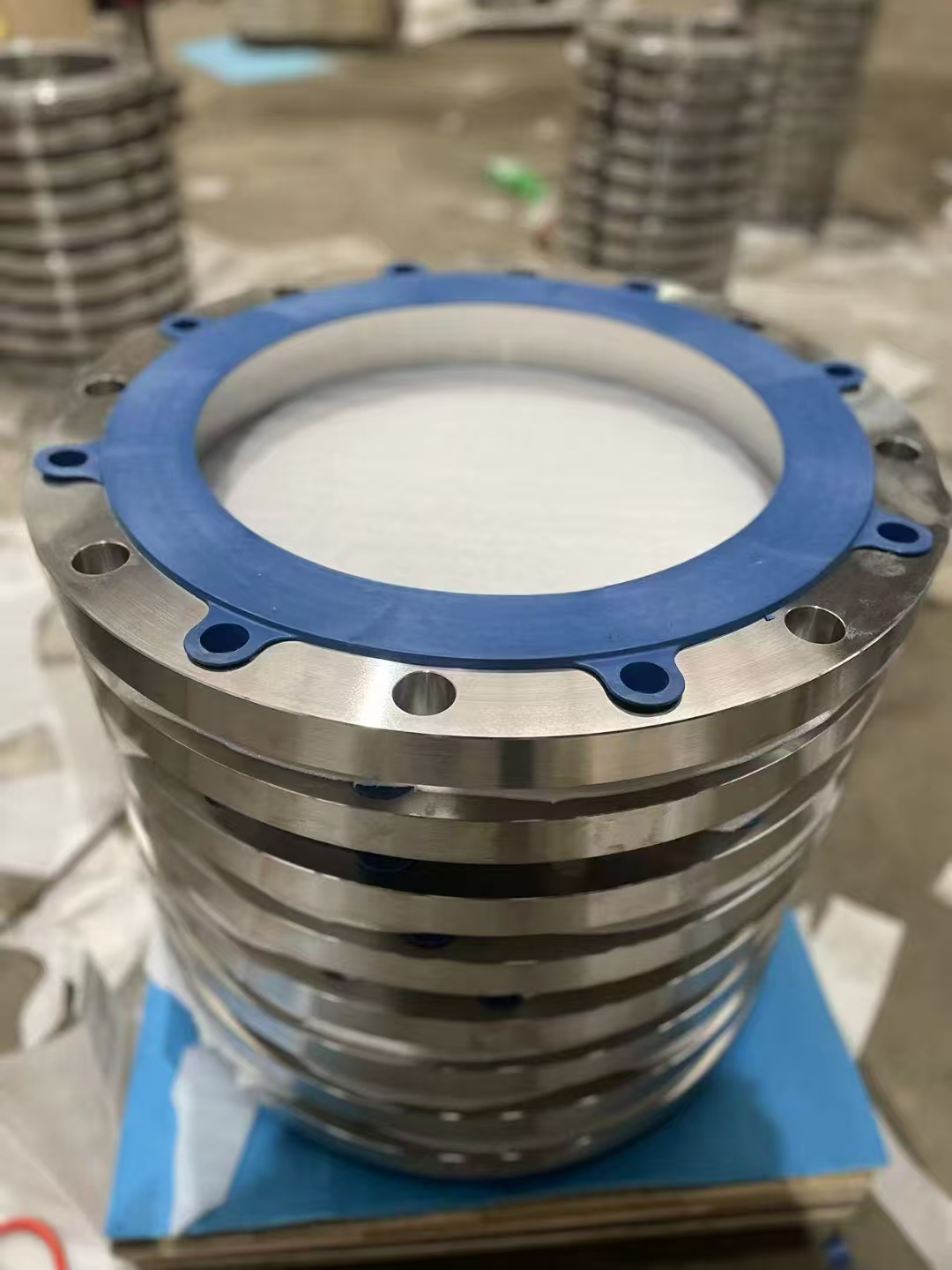

- Cov hau yas rau kev kaw lub ntsej muag
- PE qhwv, roj tsis muaj roj, thiab hnab desiccant kom tiv thaiv kev xeb
- Muaj cov cim barcode thiab pallet rau txhua tus neeg
Kev Thauj Mus Los thiab Kev Thauj Mus Los
Womic Steel muaj kev sib koom tes logistics thiab kev xa khoom zoo:
- Kev ntim khoom rau hauv thawv nrog cov phiaj xwm thauj khoom zoo tshaj plaws
- Kev xa khoom mus rau CIF / CFR / DDP qhov chaw
- Kev koom tes ncaj qha nrog cov kab xa khoom ua kom muaj kev sib tw thauj khoom
- Cov khoom ntim khoom siv zog rau cov flanges hnyav nrog kev thaiv sab hauv thiab cov hlau strips
Kev Pabcuam Kho Kom Haum thiab Ua Haujlwm
Peb lub chaw ua haujlwm machining hauv tsev muab:
- CNC tig, ntsia thiab drilling
- Kev cai sealing ntsej muag machining (RTJ, serrated, tiaj tus)
- Vuam thiab cladding (stainless rau carbon)
- Xov (NPT / BSPT / BSPP)
- Kev kos duab tshwj xeeb thiab kev txhawb nqa CAD
- Kev txhuam thiab kev ua kom huv si rau cov flanges huv
- Kev kho roj passivation thiab tiv thaiv xeb
Vim li cas thiaj xaiv Womic Steel?
1. Muaj peev xwm tsim tau ntau tshaj 15,000 tons txhua xyoo
2. Kev nrhiav tau cov ntaub ntawv tag nrho thiab cov ntaub ntawv tshuaj xyuas
3. Kev yuav khoom siv raw sai los ntawm cov neeg muag khoom lag luam zoo
4. Cov kev daws teeb meem tshwj xeeb nrog lub sijhawm luv luv
5. Kev siv tshuab siab heev thiab kev kuaj hauv tsev
6. Kev paub txog kev xa tawm thoob ntiaj teb thiab cov ntaub ntawv hais txog qhov project
Tiv Tauj Peb
Rau koj qhov project tom ntej, ntseeg Womic Steel kom xa cov flanges stainless hlau precision-engineered nrog kev xa khoom sai thiab kev txhawb nqa tag nrho.
